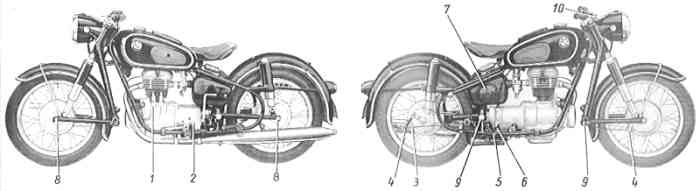

| Servicing Items (The numerals correspond with the lubrication points in the illustrations) |
Miles | Thereafter every miles | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 300 | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | |||
1 |
Change oil in engine, capacity 1.25 litres = 2.2 Imp. pints = 2.6 U.S. pints | O | O | O | O | O | O | O | O | O | 1000 |
| Remove the oil sump and clean the gauze filter in gasoline. | O | 8000 | |||||||||
2 |
Check oil level in gearbox and top up | O | O | O | O | O | O | O | 1000 | ||
| Oil change, capacity 0.65 litres = 1.1 Imp. pints = 1.3 U.S. pints | O | O | 8000 | ||||||||
3 |
Bevel drive: Check oil level and top up | O | O | O | O | O | O | O | 1000 | ||
| Oil change, capacity 125 c.c. = 1/4 U.S. | O | O | 8000 | ||||||||
4 |
Oil all joints of braking mechanism | O | O | O | O | O | O | O | O | 1000 | |
5 |
Grease brake pedal | O | O | O | O | O | O | O | O | 1000 | |
6 |
Oil clutch operating lever on gearbox | O | O | O | O | O | O | O | O | 1000 | |
7 |
Remove air filter, wash it in gasoline, moisten with oil, then sling off excess oil | O | O | O | O | O | O | O | O | 1000 | |
8 |
Remove wheels and clean wheel hubs, renew grease | O | 8000 | ||||||||
9 |
Remove swing fork pivot bearings, front and rear, clean and grease the taper roller bearings | O | 8000 | ||||||||
10 |
Grease all control cables | O | 8000 | ||||||||
