COMMERCIAL STAINLESS STEEL BOLT KITS

Contains 90% of fasteners. There are some coarse thread substitution in these kits.

accessory 082--$235.20--stainless steel bolt kit for bench seat R50 R60 R60/2 R50S R69S List of kit contents
accessory 083--$235.20--stainless steel bolt kit for solo seat R50 R60 R60/2 R50S R69S
accessory 084--$235.20--/2US stainless steel bolt kit R50US R60US R69US
accessory 086--$363.75--R26 stainless steel bolt kit 339 pieces bagged in 23 packets
accessory 087--$395.10--R27 stainless steel bolt kit 339 pieces bagged in 23 packets
accessory 088--$205.20--/5 stainless steel bolt kit short wheel base only
accessory 089--$205.20--/5 stainless steel bolt kit long wheel base only
accessory 090--$197.60--/6 stainless steel bolt kit
accessory 091--$210.60--bolt kit R90S R100S R100CS ss
accessory 092--$200.00--/7 stainless steel bolt kit
accessory 093--$232.20--bolt kit R100RT/RS ss

---

Earles Fork bolt kits do not contain the following: Drain plugs, socket head cap screws visible on engine, lower rear gas tank mount fasteners, front/rear axles, stepped nuts for fender stays, motor mounts, steering damper parts, hard cylinder base nuts. Note the EFT bolt kits contain the early 14mm wrench sized front cover nuts, not the late style 10mm. IN HOUSE SUB ASSEMBLY KITS - STAINLESS STEEL WITH ALL FASTENERS
(axles, risers, etc.)
When you click a link to order a bolt kit from this page, you'll get all the items listed after that link in a labeled bag. If you don't want all of the parts listed in a kit, then note the part numbers and quantities you want and go to the main parts order page to click individual links for the part numbers you wish to buy. You may click links on this page as well as links on the main parts page and all of the items will be added to one order form. We hope this makes your ordering easier. As always, if you have questions, please contact Elaine or Vech.

Quick-jump on this page: Oil pan Engine front gear cover Engine generator cover, late Engine generator cover, early Engine half-moon engine cover Engine R50, R60 Engine R69, R69S Engine mount no crash bar Engine mount with crash bar           Carburetor kit Gas tank, standard Gas tank, 6.5-gallon Mufflers Transmission Upper triple plate Front fork

Front shocks original Front shocks, economy Headlight bucket, fork ears Steering damper R50, R60, R69           Handlebars, risers Lever option one Lever option two Axle front Axle rear Front brake Rear brake Front fender Rear fender Rear fender rack Tail light License plate holder Driver solo seat Bench seat EFT

Passenger solo seat fender mount Passenger solo seat rack mount Driveshaft rear swingarm Final drive Rear shocks Battery box Horn Centerstand Passenger pegs Passenger pegs with Enduro bags 1969 US telescopic front end 1969 US telescopic risers Damper conversion kit Gearbox/transmission gasket, seal & bearing set Pagusa solo driver seat R25 R26 R27 Rubber kit R50 & R60 Fender box 18 & 19-inch Plug set: drain/fill Earles Fork twins Pagusa solo driver seat R51-R68

Bench Mark Works LLC' complete online parts store

OIL PAN: Kit 001 - $30.60 - Stainless steel bolt kit for oil pan R51/3-R67/3 R68 R50-R69S with magnet drain plug and crush washer.
07 11 9 932 070--quantity 12--wave washer 6mm ss
07 11 9 913 463--quantity 12--bolt 6x1x16mm
07 11 9 963 242--quantity 1--copper seal oil
11 13 0 007 104.1--quantity 1--plug oil fill/drain

ENGINE FRONT GEAR COVER: Kit 002 - $11.50 - Stainless bolt kit for engine front gear cover R51/3-R67/3 R68 R50-R69S.
07 11 9 919 937----quantity 12--socket head cap screw 6x40 ss
07 11 9 919 916----quantity 3--socket head cap screw 6x15 ss
07 11 9 931 650----quantity 12--washer ss

ENGINE: HEADS, CYLINDERS & VALVE COVERS R50, R60: Kit 006 - $22.90 - Fastener kit for mounting head/cylinder/valve R51/3-R67/3 R50-R60/2. Does not include rocker arm hardware.
11 11 0 001 104S----quantity 8--nut cylinder base M10 R26-R69S ss
11 12 0 023 160 ----quantity 2--nut valve cover center pss Photo
07 11 9 932 090 ----quantity 2--wave washer 8mm ss
07 11 9 922 053 ----quantity 4--nut 6x1ss
07 11 9 932 070 ----quantity 4--wave washer 6mm ss

ENGINE: HEADS, CYLINDERS & VALVE COVERS R69, R69S: Kit 007 - $112.90 - Stainless fastener kit for mounting R69S head/cylinder/valve. Includes special exposed bolts and washer. Does not include rocker arm hardware.
11 11 0 001 104S----quantity 8--nut cylinder base M10 R26-R69S ss
11 12 0 023 160 ----quantity 2--nut valve cover center pss Photo
07 11 9 932 090 ----quantity 2--wave washer 8mm ss
07 11 9 922 053 ----quantity 4--nut 6x1ss
07 11 9 932 070 ----quantity 4--wave washer 6mm ss
11 12 0 022 108.1 ----quantity 4--bolt pss
11 12 0 022 166 ----quantity 4--washer for exposed cylinder head mounting bolt R50, R69 & R69S ss

CARBURETOR KIT: Kit 010 - $5.00 - Stainless nuts and washers from carburetor to head 1950-1969 R51/2-R68 R50-R69S BMW twins.
07 11 9 922 081 ---quantity 4--8x1.25 nut ss
07 11 9 932 090 ----quantity 4--wave washer 8mm ss

GAS TANK (standard type): Kit 011 - $31.40 - bolt kit for gas tank 3.5 gallon R50-R69S
07 11 9 914 093----quantity 1--bolt upper front 8x100 ss
07 11 9 932 090 ----quantity 2--wave washer 8mm ss
07 11 9 931 065 ----quantity 2--flat washer 8mm ss
07 11 9 922 081 ----quantity 2--nut 8x1.25 ss
07 11 9 914 053S ----quantity 2--bolt lower M8x1 ss
16 11 4 080 145 ----quantity 2--washer 8x30 ss
07 11 9 913 627 ----quantity 1--bolt 8x1.25x20 ss
07 11 9 901 310 ----quantity 4--emblem screws pss

GAS TANK (6.5 gallon): Kit 012 - $31.40 - bolt kit for gas tank 6.5 gallon R50-R69S
07 11 9 912 536 --quantity 1--bolt front 6.5-gallon tank ss
07 11 9 932 090 --quantity 2--wave washer 8mm ss
07 11 9 931 065 --quantity 2--flat washer 8mm ss
07 11 9 922 081 --quantity 2--nut 8x1.25 ss
07 11 9 914 053S--quantity 2--bolt gas tank lower 1951-1969 singles & twins M8x1 ss
16 11 4 080 145 --quantity 2--washer 8x30 ss
07 11 9 913 627 --quantity 1--bolt 8x1.25x20 ss
07 11 9 901 310 --quantity 4--emblem screws pss

MUFFLERS: Kit 013 - $5.95 - click to buy
07 11 9 913 627--quantity 2--bolt 8x1.25x20 ss
07 11 9 932 090--quantity 2--wave washer 8mm ss
07 11 9 931 065--quantity 2--flat washer 8mm ss
07 11 9 922 081--quantity 2--nut 8x1.25 ss

TRANSMISSION: Kit 014 - $69.15 - click to buy
07 11 9 932 090 --quantity 1--wave washer 8mm ss
07 11 9 931 065 --quantity 5--flat washer 8mm ss
07 11 9 922 081 --quantity 5--nut 8x1.25 ss
07 11 9 912 551 --quantity 1--hex bolt lower right transmission twins 8x75 ss
07 11 9 922 053 --quantity 8--nut 6x1ss
11 13 0 007 104.1--quantity 1--plug oil fill/drain 14x1.5 pss no magnet
11 13 0 007 104M --quantity 1--plug oil pan with magnet cad plated 14x1.5 1955-1969
07 11 9 963 242--quantity 2--seal oil pan drain plug
23 11 1 030 174--quantity 1--vented speedo cable screw ss R26-R69S
23 41 1 066 102--quantity 1--lock screw 8mm M6 foot gear change lever R24-R69S ss
23 51 1 056 124--quantity 1--kick start lever bolt ss R24-R69S

UPPER TRIPLE PLATE: Kit 015 - $30.00 - click to buy
31 41 2 000 343 --quantity 2--fork cap bolt top pss 1955-1968 singles & twins
31 41 2 000 345P--quantity 2--washer top fork washer pss 1955-1968 singles & twins

FRONT SHOCKS (original): Kit 017 - $84.40 - click to buy
07 11 9 914 345FT--quantity 2--bolt 10mmx1.0x42 pss
07 11 9 914 347FT--quantity 2--bolt 10x1x48 pss
07 11 9 922 122FT--quantity 4--nut 10x1 ss
07 11 9 933 110 --quantity 4--washer 10mm wave ss
31 41 2 000 345P --quantity 4--washer front shock pss

HEADLIGHT BUCKET & FORK EARS: Kit 019 - $35.30 - click to buy
07 11 9 913 476 --quantity 4--bolt 6mmx1x20mm fork ears, ss
07 11 9 932 070 --quantity 4--wave washer 6mm ss
07 11 9 913 661 --quantity 2--hex bolt head light pss
61 31 8 050 134 --quantity 2--head light washer R24-R69S R50/5-R75/5 pss
63 12 8 050 185Sc--quantity 1--screw head light chrome rim ss 1955-1969 singles & twins

STEERING DAMPER R50, R60, R69, not R69S: Kit 020 - $47.75 - click to buy
07 11 9 932 090--quantity 1--wave washer 8mm ss
31 42 2 000 255--quantity 1--damper anchor bolt R51-R60 ss
07 11 9 923 414--quantity 2--nut 8x1.25 castellated
07 11 9 931 065--quantity 1--flat washer 8mm ss
07 11 9 931 851--quantity 1--washer ss fits steering damper stepped bolt R25/2-R69S
31 41 2 000 295--quantity 1--steering damper bolt Earles fork bikes ss
07 11 9 945 111--quantity 2--cotter pin 2x20

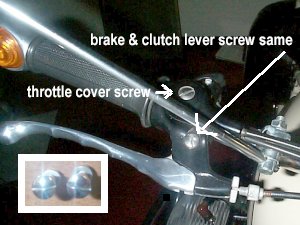

LEVERS (option one): Kit 022 - $44.50 - click to buy
32 72 1 230 870--quantity 2--Magura lever screw small head pss Photo
07 11 9 932 070--quantity 2--wave washer 6mm ss
07 11 9 922 053--quantity 2--nut 6x1ss
32 72 2 072 221--quanitty 2--cable adjuster chrome
32 72 2 072 259--quantity 1-- throttle cap leans head screw ss
07 11 9 907 791--quantity 2--screw 6mm ss
07 11 9 919 360--quantity 1--screw 4x6

LEVERS (option two): Kit 023 - $57.40 - click to buy
07 11 9 932 070--quantity 2--wave washer 6mm ss
07 11 9 922 053--quantity 2--nut 6x1ss
32 72 2 072 217--quantity 2--Magura lever screw 1950-1969 singles & twins pss Photo
32 72 2 072 221--quanitty 2--cable adjuster chrome
32 72 2 072 259--quantity 1-- throttle cap leans head screw ss
07 11 9 907 791--quantity 2--screw 6mm ss
07 11 9 919 360--quantity 1--screw 4x6

FRONT BRAKE 2 only: Kit 025 - $6.95 - click to buy
07 11 9 912 267--quantity 2--bolt 6x1.0x30 front levers, brake backing plate ss
07 11 9 922 053--quantity 2--nut 6x1ss
07 11 9 932 070--quantity 2--wave washer 6mm ss
07 11 9 922 065--quantity 1--8mm flat washer
07 11 9 921 605--quantity 1--thin jam nut for brake eccentric bolt

REAR BRAKE: Kit 026 - $22.35 - click to buy
07 11 9 912 508--quantity 1--bolt drilled 8x1.25x45 ss
07 11 9 931 065--quantity 3--flat washer 8mm ss
07 11 9 945 111--quantity 3--split pin ss
07 11 9 923 414--quantity 1--nut 8x1.25 castellated ss
07 11 9 921 616--quantity 2--nut ss 10x1 fine thread
07 11 9 933 110--quantity 2--washer ss 10mm wave
07 11 9 913 463--quantity 1--bolt 6x1x16mm ss
07 11 9 922 053--quantity 1--nut 6x1ss
07 11 9 922 026--quantity 2--nut 4x.7 ss
07 11 9 919 386--quantity 2--screw 4x.7x16 brake switch ss
07 11 9 936 041--quantity 2--washer 4mm wave ss

FRONT FENDER (Earles Fork): Kit 027 - $12.60 - click to buy
07 11 9 913 222--quantity 2--bolt 5x10 ss
07 11 9 936 105--quantity 2--washer 5mm wave ss
07 11 9 913 627--quantity 2--bolt 8x1.25x20 ss
07 11 9 922 036--quantity 2--nut 5x.8 ss
07 11 9 922 081--quantity 2--8x1.25 nut ss
07 11 9 932 090--quantity 2--wave washer 8mm ss
07 11 9 913 463--quantity 2--bolt 6x1x16mm ss,
07 11 9 931 043--quantity 2--flat washer 6mm ss
07 11 9 922 053--quantity 2--nut 6x1ss
07 11 9 932 070--quantity 2--wave washer 6mm ss

REAR FENDER: Kit 028 - $34.45 - click to buy
07 11 9 913 627--quantity 1--bolt 8x1.25x20 ss
07 11 9 922 081--quantity 1--nut 8x1.25 nut ss
07 11 9 931 065--quantity 3--flat washer 8mm ss
07 11 9 932 090--quantity 1--wave washer 8mm ss
07 11 9 913 463--quantity 6--bolt 6x1x16 ss
07 11 9 922 053--quantity 6--nut 6x1ss
07 11 9 931 043--quantity 6--flat washer 6mm ss
07 11 9 932 070--quantity 6--wave washer 6mm ss
07 11 9 913 662--quantity 2--bolt 8x1.25x20 ss
46 62 5 096 122--quantity 2--stepped nut 8x1.25 ss
46 62 5 096 152--quantity 2--acorn nut ss rear fender & top motor 1955-1969

REAR FENDER-LUGGAGE RACK: Kit 029 - $16.95 - click to buy
07 11 9 931 043--quantity 6--flat washer 6mm ss
07 11 9 932 070--quantity 6--wave washer 6mm ss
07 11 9 922 053--quantity 6--nut 6x1 ss
07 11 9 913 463--quantity 6--bolt 6x1.0x16mm ss

TAIL LIGHT: Kit 030 - $3.90 - Stainless bolt kit for Hella coffee-can style tail light for all BMW Earles fork singles and twins. Includes attachment bolts, tail light retaining screw, and fiber washer.
07 11 9 913 222 -- quantity 4--bolt 5x10 ss
07 11 9 936 105 -- quantity 4--washer 5mm wave ss
63 24 8 054 125Sc--quantity 1--screw for tail light chrome ring R27-R69S zinc plated

LICENSE PLATE HOLDER TO FENDER: Kit 031 - $6.925 - click to buy
07 11 9 913 222--quantity 3--bolt 5x10 ss
07 11 9 936 105--quantity 3--washer 5mm wave ss
07 11 9 922 036--quantity 3--nut 5x.8 ss

LICENSE FRAME TO PLATE HOLDER: Acc 31b - $11.20 - click to buy
07 11 9 913 441 --quantity 4--bolt 6mm ss
07 11 9 932 070 --quantity 4--washer 6mm wave ss
11 14 0 002 193A--quantity 4--acorn nut 6mm ss
07 11 9 931 043 --quantity 4--washer 6mm flat ss

Bolt kit for driver solo seat, Earles fork Twins: Kit 032 - $20.25 - click to buy
07 11 9 914 364CTK--quantity 1--bolt, nut & washer solo seat Earles Fork singles & twins ss
07 11 9 913 463 --quantity 4--bolt 6x1x16ss
07 11 9 922 053 --quantity 4--nut 6x1 ss
07 11 9 931 043 --quantity 4--flat washer 6mm ss
07 11 9 932 070 --quantity 4--wave washer 6mm ss
07 11 9 931 077 --quantity 1--washer 10mm flat ss
07 11 9 922 081 --quantity 2--nut 8x1.25 ss
07 11 9 922 110CT--quantity 1--nut 10x1.25 coarse thread ss seat nose
07 11 9 931 065 --quantity 2--flat washer 8mm

EFT BENCH SEAT (narrow or wide): Kit 032B - $16.25 - click to buy
07 11 9 922 081--quantity 1--nut ss
07 11 9 931 065--quantity 1--flat washer 8mm ss
07 11 9 913 463--quantity 6--bolt 6x1x16 ss
07 11 9 922 053--quantity 6--nut 6x1 ss
07 11 9 931 043--quantity 6--flat washer 6mm ss
07 11 9 932 070--quantity 6--wave washer 6mm ss

PASSENGER SOLO SEAT - FENDER MOUNT: Kit 033A - $10.20 - click to buy
07 11 9 913 627--quantity 4--bolt 8x1.25x20 ss
07 11 9 931 065--quantity 4--flat washer 8mm ss
07 11 9 932 090--quantity 4--wave washer 8mm ss
07 11 9 922 081--quantity 4--nut 8x1.25 ss

PASSENGER SOLO SEAT - RACK MOUNT: Kit 033B - $9.90 - click to buy
07 11 9 913 627--quantity 3--bolt 8x1.25x20 ss
07 11 9 931 065--quantity 3--flat washer 8mm ss
07 11 9 932 090--quantity 3--wave washer 8mm ss
07 11 9 922 081--quantity 3--nut 8x1.25 ss

DRIVESHAFT-REAR SWING ARM: Kit 034 - $40.95 - click to buy
07 11 9 922 093 --quantity 4--nut 8x1 fine thread ss
07 11 9 932 090 --quantity 4--wave washer 8mm ss
33 53 3 054 176 --quantity 1--rear axle pinch bolt D-bolt pss R26-R69S
07 11 9 922 122FT--quantity 1--nut ss 10x1 fine thread
07 11 9 933 110 --quantity 1--washer ss 10mm wave
07 11 9 919 216 --quantity 2--fill & drain plug rear swing arm pss
07 11 9 963 086 --quantity 2--seal oil drain plug driveshaft swing arm drain & fill

Final drive to swingarm fasteners only, /2 only: Kit 034 - $8.00 - click to buy
Fasteners and wave washers only to mount the final drive to the rear swingarm
Kit 035 - $8.00 - bolt kit final drive to swing arm /2 twins
REAR SHOCKS: Kit 036 - $38.90 - click to buy
33 53 3 054 270--quantity 1--right rear lower shock bolt pss
07 11 9 931 083--quantity 3--flat washer 12x24 rear shock ss
07 11 9 914 625.1--quantity 1--bolt left rear shock polished head ss fine thread 1955-1969 twins
07 11 9 933 120--quantity 1--washer 12mm wave ss
07 11 9 921 626--quantity 1--nut 12x1.5 ss

BATTERY BOX: Kit 037 - $4.60 - click to buy
07 11 9 913 441--quantity 2--bolt 6x1x12mm ss, rear fender &
07 11 9 931 043--quantity 2--flat washer 6mm ss
07 11 9 922 053--quantity 2--nut 6x1 ss
07 11 9 932 070--quantity 2--wave washer 6mm ss

BATTERY BOX: Kit 037B - $3.50 - click to buy
bolt kit for battery terminals, 2 bolts, 2 nuts, 2 washers ss

HORN: Kit 038 - $7.30 - click to buy
07 11 9 913 627 --quantity 1--bolt 8x1.25x20 ss
07 11 9 922 081 --quantity 2--nut 8x1.25 ss
07 11 9 931 065 --quantity 2--flat washer 8mm ss
07 11 9 932 090 --quantity 2--wave washer 8mm ss
61 33 8 046 015Sc--quantity 6--screw face Klaxon horns ss

CENTERSTAND bolt kit, original type Earles Fork Twins: Kit 039 - $31.95 - click to buy
46 52 4 028 220FT--quantity 2--bolt 10mmx1.0x30 fine thread ss
07 11 9 931 077 -- quantity 2--washer 10mm flat ss
07 11 9 933 110 -- quantity 2--washer ss 10mm wave
07 11 9 922 122FT--quantity 2--nut 10x1 fine thread ss

CENTERSTAND bolt kit, economy type Earles Fork TwinsFONT COLOR=#000000>Kit 039CT - $28.00 - click to buy
Same as Kit 039, but with coarse thread fasteners.
PASSENGER PEGS: Kit 040 - $7.95 - click to buy
07 11 9 913 891--quantity 2--bolt 12x1.75x25 passenger pegs ss
07 11 9 933 120--quantity 2--washer 12mm wave ss

PASSENGER PEGS (with Enduro bags): Kit 041 - $8.70 - click to buy
07 11 9 913 891L--quantity 2--bolt 12x1.75x30 passenger pegs ss
07 11 9 933 120 --quantity 2--washer 12mm wave ss

1969 US TELESCOPIC FRONT END: Kit 042 - $40.90 - click to buy
11 14 0 002 193A--quantity 6--nut 6mm acorn pss
07 11 9 931 043 --quantity 8--flat washer 6mm ss
07 11 9 913 441 --quantity 6--bolt 6x1x12mm ss, rear fender &
07 11 9 922 053 --quantity 4--nut 6x1 ss
07 11 9 913 476 --quantity 2--bolt 6x1x20mm fork ears, ss
07 11 9 923 414 --quantity 2--nut 8x1.25 castellated top motor mount brake damper ss
07 11 9 922 428 --quantity 4--nut ss 8x1.25 locking fork brace
07 11 9 945 111 --quantity 2--split pin ss
46 61 5 090 154 --quantity 1--socket cap screw 8x1.25x50 front brake anchor ss
07 11 9 919 984 --quantity 1--socket head cap screw 8x1.25x35 axle pinch bolt ss
07 12 9 922 719 --quantity 2--lock nut 10x1.5 lower triple clamp US models & /5 ss

RISERS 1969 US TELESCOPIC: Kit 043 - $5.00 - click to buy
07 11 9 922 081--quantity 4--nut 8x1.25 ss
07 11 9 931 065--quantity 4--flat washer 8mm ss

DAMPER CONVERSION KIT: R69S hydraulic to friction-style Kit 044--$160.65--click to buy
07 11 9 932 090 --quantity 1--wave washer 8mm ss
31 42 2 000 255 --quantity 1--damper anchor bolt R51-R60 ss
07 11 9 923 414 --quantity 2--castellated nut 8x1.25 ss
07 11 9 931 065 --quantity 1--flat washer 8mm ss
07 11 9 931 851 --quantity 1--washer steering damper stepped bolt ss
31 42 2 000 257 --quantity 2--damper anchor rubber R25/2-R69S
31 41 2 000 295 --quantity 1--steering damper bolt
31 41 2 000 231 --quantity 1--damper thrust plate R26-R69S
31 41 2 000 217 --quantity 1--damper resistance plate
31 41 2 000 235 --quantity 2--damper friction disk
07 11 9 949 213 --quantity 3--copper rivets
07 11 9 945 111 --quantity 2--cotter pin

GEARBOX/TRANSMISSION COMPLETE GASKET, SEAL & BEARING SET
R50/R50S/R60/R69/R69S Kit 045--$211.55--click to buy
23 11 1 338 646--quantity 1--gasket transmission door
23 11 1 006 124--quantity 1--seal foot shift gear lever R25-R27
23 11 1 006 179--quantity 1--seal gearbox output shaft R26-R69S
23 11 3 038 513--quantity 1--seal gearbox input shaft R25-R27
23 51 1 006 135--quantity 1--seal kickstarter shaft R25-R27 R51/3-R60
21 52 1 020 109--quantity 1--seal clutch throwout piece R24-R27 R51/2-R100
07 11 9 981 219--quantity 2--bearing replacement
07 11 9 981 214--quantity 1--bearing replacement
07 11 9 981 408--quantity 1--bearing replacement input shaft transmission
07 11 9 981 416--quantity 1--bearing replacement output shaft transmission
07 11 9 982 409--quantity 1--tapered bearing replacement layshaft

Bolt kit for Pagusa Driver solo seat R25 R26 R27 late R51/3-R68 with 10mm nose bolt
Kit 046--$12.10--click to buy
07 11 9 914 364CTK--quantity 1--bolt nut 2 washers 10x1.5x70 ss
07 11 9 922 081--quantity 2--nut 8x1.25 ss
07 11 9 931 065--quantity 2--washer flat 8 mm ss
07 11 9 932 090--quantity 2--washer wave 8mm ss
07 11 9 913 662--quantity 1--bolt 8x1.25x30 ss
07 11 9 912 505--quantity 1--bolt 8x1.25x45 ss

Bolt kit for Pagusa driver solo seat R51-R68 early with 8mm nose bolt
Kit 046A--$8.60--click to buy
07 11 9 914 089CT--quantity 1--bolt 8x1.25x70 ss
07 11 9 922 081--quantity 3--nut 8x1.25 various
07 11 9 931 065--quantity 3--washer 8mm flat ss
07 11 9 932 090--quantity 3--washer wave 8mm ss
07 11 9 913 662--quantity 1--bolt 8x1.25x30 ss
07 11 9 912 505--quantity 1--bolt 8x1.25x45 ss

RUBBER PARTS FOR BMW R50 & BMW R60 MOTORCYCLES
Kit 047--$527.50--click to buy
All rubber parts for BMW R50 and BMW R60 motorcycles (tire and seat parts not listed here):
07 11 9 963 493--quantity 1--gasket crankcase breather 1951-1968 twins
11 11 0 001 106--quantity 1--timing plug white rubber
11 11 0 033 163--quantity 4--pushrod tube seal R51/3-R69S
11 61 0 043 163--quantity 2--rubber ring in gearbox R50-R60
11 61 0 043 161--quantity 2--rubber sleeve carburetor to air tube boot R50-R60/2
12 12 8 036 150--quantity 2--rubber grommet for plug wire at case R51/3-R69S
12 12 8 036 160--quantity 2--spark plug rubber top original reproduction
13 11 0 042 111--quantity 2--rubber boot throttle cable at carburetor
13 72 0 043 536--quantity 2--air filter rubber o-ring R50-R60
13 72 0 043 809--quantity 1--rubber gasket Hella tail light to fender R26-R69S
16 11 4 080 189--quantity 1--knee pad left side
16 11 4 080 187--quantity 1--knee pad right side R26-R27
16 11 4 080 288--quantity 1--gasket tool box
16 11 4 080 148--quantity 4--washer rubber 5mm
16 11 4 080 248--quantity 2--10mm gas tank rubber washer upper singles & twins
23 41 1 232 116--quantity 1--foot shift rubber R24-R90S
23 51 4 034 256--quantity 1--kickstart rubber stop complete with ss parts R51/3-R69S
23 11 1 006 174--quantity 1--gearbox neutral switch rubber cover silver color
26 11 3 038 225--quantity 1--rubber bellow driveshaft boot
31 41 2 054 234--quantity 4--front shock silent block bushing
31 41 2 000 338--quantity 2--rubber pad headlight mount top small R26-R69S
31 42 2 000 257--quantity 2--damper anchor rubber R25/2-R69S
31 41 2 000 336--quantity 2--rubber pad headlight mount bottom large R26-R69S
31 41 2 000 334--quantity 2--rubber plug for swing arm R26-R69S
31 41 2 000 299--quantity 2--upper triple plate rubber plug
32 72 1 230 407 & 32 72 1 230 868--quantity 1 set--handlebar rubber grip set/two
33 53 3 054 204--quantity 2--rubber shock grommet lower R26-R69S
33 53 3 054 208--quantity 2--rubber shock grommet upper R26-R69S
33 53 3 054 296--quantity 2--shock silent block bushing twins rear
46 53 9 024 170--quantity 1----side stand rubber bumper
46 52 4 028 135--quantity 1--rubber bumper center stand R51/2-R69S
46 71 1 235 428--quantity 2--driver footpeg rubber singles & twins
51 14 6 040 110--quantity 2--gasket enamel tank emblem rubber
61 13 8 070 224--quantity 1--rubber grommet wiring harness/battery carrier
61 13 8 080 160--quantity 1--rubber boot speedometer cable EF
61 31 8 070 199B--quantity 2--rubber grommet
61 21 8 042 211--quantity 1--battery rubber pad 85x116x5 R50-2-R69S US version
61 31 8 070 198--quantity 1--rubber grommet D-shaped R25/2-R69S
61 13 8 070 196--quantity 1--rubber grommet
61 31 8 050 136--quantity 4--headlight rubber washer R25-R69S
61 31 8 070 199--quantity 2--rubber grommet
61 21 8 042 138S--quantity 1--battery strap
62 14 8 048 128--quantity 1--rubber gasket light window red/green indicator
62 12 8 080 115--quantity 1--speedometer rubber O-ring
63 24 8 054 123--quantity 1--rubber gasket Hella tail light lens R27-R69S
63 12 8 071 754--quantity 1--rubber grommet for speedometer cable R25-R75/5
63 12 1 353 623--quantity 1--seal Bosch headlight

FENDER BOW 18-inch and 19-inch
Kit 048--$7.60--click to buy
07 11 9 913 222--quantity 2--bolt 5x8x10 fender brace ss
07 11 9 936 105--quantity 2--washer 5m waver ss
07 11 9 922 036--quantity 2--nut 5x.8 ss
07 11 9 922 081--quantity 2--nut 8m ss
07 11 9 932 090--quantity 2--washer 8m wave ss
07 11 9 913 627--quantity 2--bolt 8x1.25x20 ss

CARB REPLACEMENT KIT R26 & R27
Kit 049--$820.90--Bing type 53 replacement carb kit complete with short manifold, bar mount choke lever and cables R26-R27
13 11 1 259 265-- quantity 1--carburettor replacement Bing R26 R27 more parts required
13 11 0 039 005cc-quantity 1--cable choke type 53 for 13 11 0 039 005 carb replacement R26 R27
13 11 0 039 005L--quantity 1--choke lever for 13 11 0 039 005 carb replacement R26 R27
13 11 0 039 005TC--quantity 1--cable throttle type 53 for 13 11 0 039 005 carb replacement R26 R27
13 11 0 039 103.1--quantity 1--short intake manifold for 13 11 0 039 005 carb replacement R26 R27

DRAIN/FILL COPPER CRUSH WASHER SET Earles Fork Twins
Kit 050--$5.20--Engine/transmission/final drive crush washer kit Earles fork twins.
07 11 9 963 242--quantity 5--copper washer oil fill/drain
07 11 9 963 086--quantity 2--copper washer oil fill/drain

DRAIN/FILL PLUG SET Earles Fork Twins
Kit 052--$71.40--click to buy
11 13 0 007 104.1--quantity 2--plug oil fill oil drain transmission & rear end M14x1.5 pss 1955-1969 without magnet
11 13 0 007 104MS--quantity 3--plug oil pan ss with magnet & crush washer M14x1.5 1955-1969
07 11 9 919 216--quantity 2--fill & drain plug rear swing arm R50-R69S 10x1x8 pss

Kit 053--$5.90--click to buy
drain plug gasket set 1970-on twins

Quick-jump on this page: Oil pan Engine front gear cover Engine generator cover, late Engine generator cover, early Engine half-moon engine cover Engine R50, R60 Engine R69, R69S Engine mount no crash bar Engine mount with crash bar           Carburetor kit Gas tank, standard Gas tank, 6.5-gallon Mufflers Transmission Upper triple plate Front fork

Front shocks original Front shocks, economy Headlight bucket, fork ears Steering damper R50, R60, R69           Handlebars, risers Lever option one Lever option two Axle front Axle rear Front brake Rear brake Front fender Rear fender Rear fender rack Tail light License plate holder Driver solo seat

Passenger solo seat fender mount Passenger solo seat rack mount Driveshaft rear swingarm Final drive Rear shocks Battery box Horn Centerstand Passenger pegs Passenger pegs with Enduro bags 1969 US telescopic front end 1969 US telescopic risers Damper conversion kit Gearbox/transmission gasket, seal & bearing set Pagusa solo driver seat R25 R26 R27 Rubber kit R50 & R60 Fender box 18 & 19-inch Pagusa solo driver seat R51-R68 Plug set: drain/fill Earles Fork twins

For those not viewing this from our main website:

Bench Mark Works LLC
Parts Page
Steib Sidecar
Pre War
Bolt Kits
